Pump Units for Client Owned Tank or Barrel

NOTE: If pump unit is being used with a barrel - a fill stem is included

If pump unit is being used with a tank - be sure the tank output is plumbed to accommodate a 1/2" ID hose as the unit does not include fittings for the existing tank.


These pumps units are set up for use with buffered propionic acids and water-soluble bacterial products. They are compatible with most other hay preservatives; however, additional components may be recommended to assure proper application. If you are using a different type of product, please let us know.

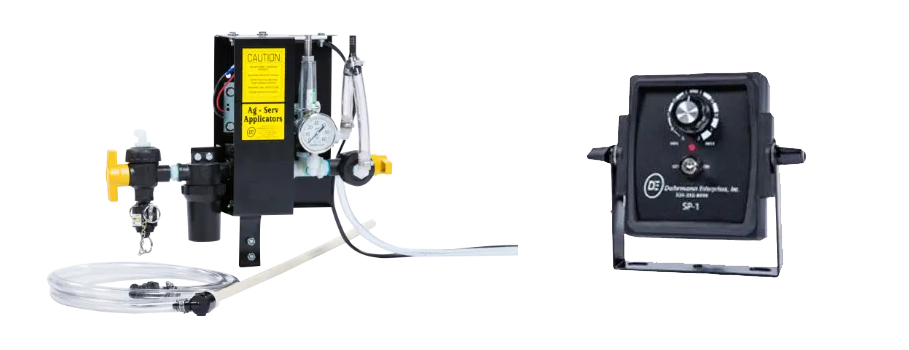

DE-9

You can get the same pump unit as the DE-100 & DE-55, without the tank and frame. You would use this pump unit with an existing tank or draw from a barrel mount

  • Pump Unit - Assembled and fluid tested in-house
  • 3.0 GPM self-priming, spec-built pump with wetted components compatible with acid based and acid producing products with a pH as low as 4
  • Filter Assembly before the pump to protect the pump unit components and nozzles. Filter screen can be removed and cleaned
  • Pressure Regulation System allows fine tuning of pressure and circulation back to the tank
  • Stainless Steel Gauge - Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry
  • Self-Fill System. You can connect the included Fill Stem Assembly to the pump unit to use the applicator pump to refill its tank
  • Wire Harness - Built and tested in-house
  • Pre-terminated 37’ Power Cord Assembly
  • 4" In-line Gauge Assembly
  • Large 4" gauge which is easy to ready, mounts in the pressure line between the pump unit and nozzles, typically on the front of a large square baler so it can be read from the cab
  • Stainless Steel Gauge - Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry
  • 3-Nozzle Assembly with 20’ Hose
  • SP-1 Speed Control
  • Built-In On/Off Switch
  • Allows application rate to be changed by adjusting the dial for changing harvest conditions
  • LED Status Indicator
  • 3 year warranty (for more information, click here)
  • Lifetime Support
  • 1 Year Applicator Warranty

Additional Options

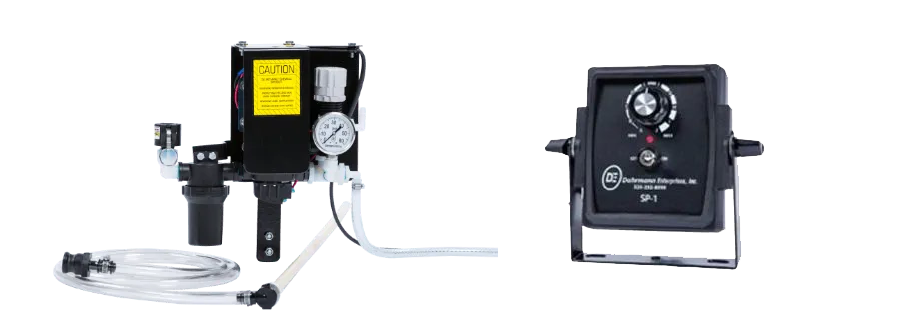

DE-7

Use with an existing tank or a barrel mount, NOT recommended for large square balers

  • Pump Unit - Assembled and fluid tested in-house
  • 2.0 GPM self-priming, spec-built pump with wetted components compatible with acid based and acid producing products with a pH as low as 4
  • Filter Assembly before the pump to protect the pump unit components and nozzles. Filter screen can be removed and cleaned
  • Pressure Regulation System allows fine tuning of pressure and circulation back to the tank
  • Stainless Steel Gauge - Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry
  • Wire Harness - Built and tested in-house
  • Pre-terminated 37’ Power Cord Assembly
  • No need to cut and splice wiring
  • 3-Nozzle Assembly with 20’ Hose
  • SP-1 Speed Control
  • Built-In On/Off Switch
  • Allows application rate to be changed by adjusting the dial for changing harvest conditions
  • LED Status Indicator
  • 3 year warranty (for more information, click here)
  • Lifetime Support
  • 1 Year Applicator Warranty

Additional Options
